New products

V25 VISUAL FLOW INDICATOR

FEATURES

  • Non electric operation
  • Flow and level models available
  • Bright red and green indication
  • Corrosion resistant construction
  • Non metal polypropylene models
  • Stainless steel models available
  • 1″ BSP or 1″ NPT process connection
  • Dieseline models available
  • Use in coloured liquids
  • Can be used in seawater
  • Fully weatherproof

MODEL V25F

For flow applications the V25 visual indicator is supplied with a flow-sensing paddle suitable for use in pipes both large and small. Designated V25F, the visual flow
indicator is a self-powered magnetically operated insertion indicator that can be used in pipes ranging from 25mm (1”) upward. The indicator simply screws into a
standard pipe tee or socket and provides a clear bright red or green face as an indication of flow or lack of flow. The V25F flow indicator is available with a normally
red face that changes to green when flow is detected. Normally red is the standard configuration and is supplied as the default model unless otherwise specified.
The indicator is also available with a normally green face that changes to red when flow is detected. The reversed colour models can be used to indicate danger when
flow is present. Visual flow indicators generally have heavy glass or plastic pressure windows that allow an operator to view the process liquid. The V25F uses a unique
coloured flag to indicate flow or lack of flow. The flag operates magnetically in a sealed see through chamber. There are no pressure windows to fail in the V25F flow
indicator. The V25F can be used in coloured or turbid liquids. It can also be used in air and gases and in liquids containing solids. When fitted with a suitable trailing
wire sensor it can even be used in effluent and sewage applications.

MODEL V25L

For tank level monitoring, the V25 visual indicator is supplied with a float and arm suitable for installing through the sidewall of a tank. Designated V25L the float level
indicator is ideal for non-electrical level indication in water, chemical and diesel fuel tanks. The V25L is available with a normally green or a normally red face. The
indicator must be ordered with the correct coloured face for the intended application. As an example, for a low level indicator the V25L would be ordered as NR,
(Normally Red). When the level is above the indicator the face of the NR indicator will be green indicating all is OK. It will change to red indicating low level if the level
drops below the indicator. For a high-level indicator application the V25L should be ordered as NG (Normally Green). The face of this indicator is green when the level
is below the indicator. It turns red if the level rises above the indicator to warn the tank is full and about to overflow

DATA SHEETS

CAD FILES

  • V25F Parasolid (.X_T) Right click and choose to save the link. Save the file with extension .x_t
  • v25L Parasolid (.X_T) Right click and choose to save the link. Save the file with extension .x_t

PRODUCT IMAGES (CLICK TO ENLARGE)

TERMS AND CONDITIONS OF SALE

GENERAL INFORMATION

REED SWITCH INFORMATION

F50 ADVANCED PUMP CONTROLLER

ApplicationsF50 400

  • Domestic water supply
  • Industrial pump control
  • Control of transfer pumps
  • Irrigation pump control
  • Pressure boosting pumps
  • Water treatment systems
  • Wash down control
  • Pool & Spa control

FEATURES

  • High pressure cutout
  • Starts on pressure or flow
  • Runs on flow
  • Stops on pressure or time
  • 10 & 20 Bar versions available
  • No metal parts in contact with water
  • Suits all pipe sizes 25mm (1”) & larger
  • Highly adaptable and adjustable
  • Directly control pumps to 3.75kw
  • Indicator lights for all functions
  • Suitable for use in sea water
  • Weatherproof housing IP67
  • Plug and play models available

INTRODUCTION

Basic pump controllers that integrate flow and pressure normally start on pressure or flow and stop when flow stops. More advanced controllers such as our F40 series provide an adjustable run-on that allows time for pressure to rise in the system before the pump is shut down. The F50 advanced pump controller takes pump control to the next level. In addition to the usual start on pressure stop on flow system used in most pump controllers, it adds the ability to set an upper pressure limit on the system. This feature means the system pressure can’t exceed safe pressure limits. It means that low class pipe can be used in a fully automatic pump system without any risk of bursting the pipework.

Unlike a basic pressure switch operated system that also sets an upper pressure limit, the F50 learns from its environment and remembers what the upper pressure limit is. In normal operation the F50 lets the pump start and stop instantly on flow. If the system pressure creeps up and eventually reaches the cutout pressure, the F50 automatically reverts to pressure start mode and will not allow the pump to start regardless of flow demand until the pressure has fallen to the startup pressure. This system gives the user the best features of an F40 pump controller with the added advantage of an adjustable high-pressure limit on the system.

MORE INFORMATION

KU SERIES LEVEL REGULATOR

FeaturesKU RESIZE

  • Robust double moulded construction
  • Polyurethane 3 core cable
  • Polypropylene housing
  • Low switching differential (75MM)
  • All direction tilt action
  • Stable repeatable switching
  • Compact size 75mm diameter
  • Optional cable weight available

DESCRIPTION

The KU series level regulator is a compact three-wire switch specifically designed for single point level control in liquids. It is highly suited to use in
sewage and effluent and any liquid containing oils, uric acid or fats. Its ability to withstand oils makes it suitable for level control in diesel fuel tanks
and in applications involving bulk diesel or oil. The KU series level regulator will provide a stable switching action with a high degree of repeatability.

MORE INFORMATION

PG20 PRESSURE GUARD

FeaturesPressure-guard

  • BURST PROTECTION FOR PIPE SYSTEMS
  • DRY RUN PROTECTION FOR PUMPS
  • SAFETY CONTROL FOR PUMPS

Description

The Kelco PG20 Pressure Guard is a dedicated pressure operated safety device that can be set to
shut down a pump if the system pressure exceeds a preset level or falls below a preset level. It can
be set for over pressure protection, under pressure protection or both.

Introduction

In pumping systems it is often desirable to protect pipework and equipment against excess pressure. For example, a high head
bore pump can easily burst low class poly pipe if the standing water level in a bore is unusually high. Pumps can also benefit
from dry run protection. A simple transfer pump can be badly damaged if run dry. A dedicated pressure trip switch that shuts
down a pump on either excessively high or low pressure or on no pressure is a great benefit in many applications.
More complicated pumping systems that may have pressure switches or any type of controls will benefit from a dedicated
pressure trip switch that acts as a guard over the whole system and shuts down the process if pressure rises or falls beyond
settable levels.

More information

E20 LOSS OF PRIME PRESSURE SWITCH

FeaturesE20 Pressure switch
  • 3 Digitally adjustable set points
  • Digital fine tuning adjustment
  • Corrosion resistant construction
  • Suitable for sea water use
  • Control motors up to 3.75Kw (5HP)
  • Simple plug in installaton
  • Automatic override on start-up
  • Loss of pressure warning light
  • Indicator lights for all functions
  • Tough reliable construction
  • Weatherproof housing IP67
  • 20 Bar (300 Psi) Rated

Description

The E20 loss of prime pressure switch is a solid-state digital pressure switch specifically for the control and protection of
domestic and industrial pressure pumps and air compressors.

Pressure switches normally have two set points, a low pressure cut in point and a high pressure cut out point.
A pump under the control of such a switch operates between the two set points. If pressure is lost due to the pump
running dry or due to a burst pipe the pump will continue to run simply because the pressure switch remains on.
In such a situation the pump will invariably sustain substantial damage due to being run dry. The E10 pressure switch
addresses this problem by providing a third adjustable switch point that can be set below the normal operating range to
turn the pump off and prevent it being damaged if it runs dry.

Applications

  • Domestic pressure systems
  • Industrial pump control
  • Compressor control
  • Irrigation pump control
  • Pool & Spa systems
  • Wash down systems
  • Water treatment
  • Bore pump control
  • Seawater Pressure
  • Effluent control
  • Pneumatic control

Data Sheets

F20 SERIES

FEATURESF20

  • Australian made
  • 0 To 500 VAC 15 Amp S.P.D.T Switch
  • Stainless, Brass and Polypropylene models
  • 3/4 BSP & 3/4 NPT Models available
  • Manual override built in
  • Modular construction
  • 200 Bar pressure rating
  • Seal-less magnetic drive
  • Diesel models available
  • Weatherproof IP67
  • Easily serviceable

Description

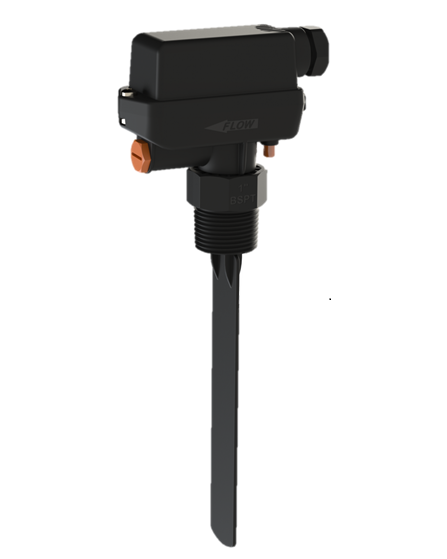

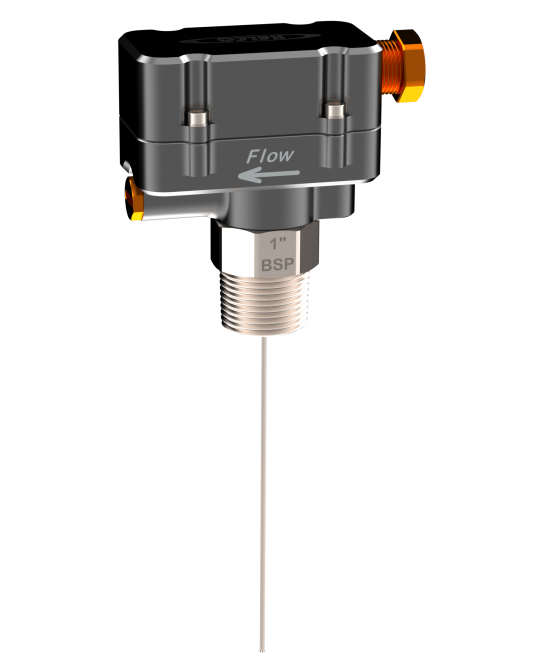

The F20 flow switch is a tough but highly sensitive paddle flow switch suitable for a wide range of flow control applications in both hot and cold liquids. The electrical housing of the switch is a separate assembly and locks onto the wet end of the switch. It can be easily and safely removed for servicing, without disturbing electrical wiring. This unique feature and the inclusion of a built in manual override makes the F20 a very versatile flow switch.

Data sheets

Related products

Paddle trimming calculator

Cad file

  • F20 Parasolid (.X_T) Right click and choose to save the link. Save the file with extension .x_t

P25 SERIES

Features

  • Directly control pump motors
  • Ideal for PLC and relay logic
  • Manual override (P25-S Model)
  • Suits pipe sizes 15mm to 25mm (1/2″ to 1″) Dia.
  • No metal parts in contact with liquids
  • 100 litres per minute flow rating
  • Versatile all position mounting
  • 18 Bar (260psi) pressure rating
  • IP67 Weatherproof housing
  • Detects very low flows

Description

The P26 inline flow switch is a rugged versatile all position mounting flow actuated switch that can detect the flow of liquids in 15mm (1/2″)
to 25mm (1″) diameter pipes. The P25 can be used in larger pipe systems provided the maximum flow does not exceed 100 litres per minute.
The switch can detect very low flows, and yet has a low head loss, high flow through rating. It can be used to detect continuous or pulsed flows.
The P25 finds a myriad of applications in industrial, rural and domestic pumping systems. It is particularly well suited to pressure pumps
due to its ability to detect and switch at extremely low flows. In addition the P25 can be used to protect low yield bore pumps and in tank
filling applications. There are no metal parts in contact with liquids such as groundwater, seawater and in acidic and alkali solutions.

The P25 flow switch is supplied complete with unions and standard PVC pipe sockets for direct solvent gluing into PVC pipework. The
union threads on the P25 are standard parallel BSP form and where required can be used to secure the switch directly into threaded Pipe-work.

Applications

  • Safety shower alarms
  • loss of prime protection for pumps
  • Flow monitoring for large dosing systems
  • Control of tank filling systems
  • Low yield bore pump protection

Data Sheets

Cad Drawings

Reed Switch Information

F40 SERIES

Features

  • Eliminates pressure tanks and switches
  • No metal parts in contact with water
  • Starts on pressure, stops on flow
  • Suits all pipe sizes 25mm (“1) & larger
  • Highly adaptable & adjustable
  • Auto restart after running dry
  • Directly control pumps to 3.75kw / 5hp
  • Ignores minor flow fluctuations
  • Indicator lights for all functions
  • Suitable for use in seawater
  • Tough reliable construction
  • 10 Bar (150psi) pressure rating
  • 20 Bar (300psi) models available
  • Weatherproof housing IP67
  • Simple plug in installation


General description

The F40 digital pump controller is a powerful self-contained microcomputer that controls and protects a pump under its command.
The F40 provides a seamless environment for the pump and gives the end user all the advantages of constant flow and at the same
time protects the pump against damage from being run dry.  Constant flow means a smooth supply free from the pressure
fluctuations that plague conventional pressure controlled pumps.

Applications

  • Domestic water supply
  • Industrial pump control
  • control of transfer pumps
  • Irrigation pump control
  • Pressure boosting pumps
  • Water treatment systems
  • Washdown control
  • Pool & spa pumps
  • Bore pump control

Data sheets

Wiring diagrams

  • Updating shortly

Paddle trimming calculator

F28 SERIES

Features

  • Four integrated timers
  • Simple plug in installation
  • No metal parts in contact with water
  • Choice of 256 run & stop cycles
  • Suits any pipe size 25mm or larger
  • Directly controls motors to 3.75 / 5hp
  • Automatic override on start up
  • Automatically ignores flow fluctuations
  • Indicator lights for all functions
  • Tough reliable proven construction
  • 20 Bar (300psi) pressure rating
  • Weatherproof housing IP67

General description

The F28 quad timer flow switch is a protection and control device for pumps.  It includes four integrated electronic
timers that can be set to automatically start and stop a pump at predetermined intervals.  For example, the F28 can
be set to automatically pump water to a tank for a period of time, then stop and wait for a preset time and then
repeat the process endlessly, all the while protecting the pump should it run out of water.  If the pump does run
out of water, the F28 will automatically shut it down and can be set to simply remain off until attended to, or to
automatically restart and attempt to recover flow after waiting for a settable time.

Applications

Loss of flow protection for pumps
Control constant flow systems
Maintain pressure in pipework
Control automatic tank filling systems
Loss of prime protection for bore pumps
Auto cyclic pumping of low yield bores

Data Sheets

Wiring Diagrams

  • Update shortly

Paddle trimming calculator

E10 LOSS OF PRIME PRESSURE SWITCH

Features

  • 3 Digitally adjustable set points
  • 4 Quadrant digital fine tuning
  • Corrosion resistant construction
  • Suitable for sea water use
  • Control motors to 3.75kw 5hp
  • Simple plug in installation
  • Automatic override on startup
  • Loss of pressure warning light
  • Indicator lights for all functions
  • Tough reliable construction
  • Weatherproof to IP67
  • 10 Bar (150psi) Rated

Description

The E10 loss of prime pressure switch is a solid-state digital pressure switch specifically for the control and protection of
domestic and industrial pressure pumps and air compressors.

Pressure switches normally have two set points, a low pressure cut in point and a high pressure cut out point.
A pump under the control of such a switch operates between the two set points.  If pressure is lost due to the pump
running dry or due to a burst pipe the pump will continue to run simply because the pressure switch remains on.
In such a situation the pump will invariably sustain substantial damage due to being run dry. The E10 pressure switch
addresses this problem by providing a third adjustable switch point that can be set below the normal operating range to
turn the pump off and prevent it being damaged if it runs dry.

Applications

  • Domestic pressure systems
  • Industrial pump control
  • Compressor control
  • Irrigation pump control
  • Pool & Spa systems
  • Wash down systems
  • Water treatment
  • Bore pump control
  • Seawater Pressure
  • Effluent control
  • Pneumatic control

Data Sheet

Wiring Diagrams

  • Update shortly

Paddle trimming calculator

Download Kelco’s paddle trimming calculator here:

(Excel format): VELOCITY 2010

Compatibility Guides

Download Compatibility Guides Here:

Warranty

Download Warranty statement here:

Kelco Warranty Statement

LC20 Modular level switch

Features

  • Australian made
  • Versatile multipoint level sensors
  • For tank gauging and level control
  • Suits PVC or Stainless systems
  • Serviceable and expandable
  • Simple and reliable
  • IP67 Weatherproof
  • Easily adjustable

Description

A number of compact highly weatherproof sensing heads are positioned along a vertical riser pipe that is attached to the side of a tank. The riser pipe is made from
a length of standard 20mm PVC or 1 inch stainless steel or copper tube. Liquid level rising and falling in the tank and in the riser pipe carries a small magnetic float
through the sensor heads and provides a series of switching points that can be used for a multitude of level control and sensing applications. Typical uses include
water treatment equipment, beverage, cosmetics and pharmaceutical manufacture, chemical metering systems, water features and a vast variety of mechanical
services and process control applications. A typical system comprises a tank with an externally mounted balance pipe, or riser pipe alongside. The riser pipe is
connected to the base of the tank and is constructed from standard pipe and fittings. Liquid level in the tank maintains an equal level in the riser pipe. As the level
of liquid in the tank changes so does the level in the adjacent riser. A small float containing a magnet rides up and down within the riser pipe, and is carried through
the sensor heads, causing them to sequentially switch.

More information

F30 Pump control

Features

  • Australian made
  • Flow and dry run protection
  • Capable of directly controlling pumps up to 3.75KW or 5HP
  • No metal parts in contact with liquids
  • 240V, 24VAC and DC models available
  • Reliable proven construction
  • Weatherproof enclosure
  • Suits pipes 25mm and above
  • 18 BAR (260 PSI) Pressure Rating
  • Stainless models available

Description

The F30 Pump Controller is a microprocessor based electronic flow switch that monitors both flow and pressure. When included in a pressure system it
vastly improves overall performance and gives the benefit of both constant flow and dry run protection. Pressure systems cycle between low and high
pressure, not because this gives the user any advantage but simply because a pressure differential is required to operate the pressure switch that
normally controls such pumps. The user sees the effect as fluctuations in pressure at the tap. If loss of prime occurs, a pump controlled by a pressure
switch will run the pump dry and can cause major damage.

More Information

Wiring Diagrams

Paddle trimming calculator

D30 Tank level switch

Features

  • Australian made
  • Fully adjustable two position switching
  • 2 HP Rated 20 AMP S.P.D.T. Switch
  • No metal parts in contact with fluid
  • -1 TO 18 Bar pressure rating
  • All thermoplastic construction
  • Weatherproof housing
  • Super reliable magnetic action
  • Universal mounting bracket supplied

Description

Modern thermoplastic piping and tank systems demand modern controls. The D30 level switch
is a rugged versatile liquid level switch that integrates state of the art magnet technology with
one of the most fundamental principles of physics to achieve a sensible and reliable solution to the
problem of controlling the level of liquids in tanks and sumps.

Applications

  • Sump pump control
  • For either pump in or pump out
  • Water tank level control
  • Effluent and liquid waste level control
  • Suits slurry and high solids applications
  • Septic and sewer pump out control
  • Cooling tower control systems
  • Suitable for sea water and many chemicals

More Information

AutoCAD Drawing

Related Products

TW25 SERIES

Features

  • Australian made
  • Corrosion resistant body
  • Weatherproof IP56 housing
  • Unique trailing stainless cable sensor
  • Widely adjustable flow sensitivity
  • Suits open channel pressure applications
  • 18 Bar Pressure rating
  • Variety of electrical options available

Description

The Kelco trailing wire flow switches are unique sensors that can be used in applications where conventional flow switches would fail.
Principally intended for control of data acquisition equipment monitoring influx and effluent systems, these switches are equally
useful in high velocity flows, or in any situation where liquids may contain solids or materials that would damage normal flow switches.
These trailing wire switches have evolved to meet the need for flow sensors that are capable of maintenance free performance in the
most arduous of environments. Conventional flow switches use flat paddles to detect liquid movement. Such paddles are prone to
damage if liquid velocity is high, or if the liquid contains solids of any appreciable size. The unique trailing stainless wire used in the
switch is simply deflected by high flow rates or by impact with entrained materials. Material will not build on, or tangle around the
trailing wire. With virtually no exceptions, the material being monitored will simply deflect the wire.

Applications

  • Data logging of effluent flows
  • River management and farm run off systems
  • Conveyor belt solids detection
  • Control and logging of industrial waste
  • Open channel data aquisition
  • Slurry pipe monitoring
  • Chemical process control

More Information

AutoCAD Drawing

Reed Switch Information

K SERIES

Features

  • Australian made
  • Low differential switching
  • All direction tilting action
  • S.P.D.T 3 wire switching action
  • Polypropylene, Hypalon and santoprene construction
  • Wide range of cable lengths available
  • Stable repeatable switching action
  • No Mercury or lead components
  • Compact size, 75mm diameter
  • Optional cable weight available

Description

The K series heavy duty level regulator is a compact three-wire float switch for highly accurate and repeatable single
point level sensing and control applications. It is ideal for use in water, sea water and most acids and alkali solutions.
It will provide a stable switching action with a very high degree of reliability. The teardrop shape of the float makes
it ideal for effluent and sewerage usage, as the float cell has no shoulders or edges for solids to build on. These float
switches can be reliably and safely used in potable water systems, as they do not contain hazardous materials such
as mercury or lead.

Applications

  • Basic liquid level control
  • Multi point level control
  • Sewerage level control
  • Chemical level control
  • High and low level alarms
  • Self powered signalling
  • Pump protection

More Information

Related Chemical compatibility guides:

AutoCAD Drawing

Related Products
