Paddle Trimming Calculator

Enter process and sensor parameters below. Product suitability is determined by the calculated equivalent drag force (gf) and indicated by colour-coded status in the Answer panel. All results assume the switch sensitivity adjustment is set to maximum.

Installation assumptions: Calculations presume the flow switch is installed vertically (top-entry) in a horizontal pipe run, with a minimum of 5 pipe diameters (5D) of unobstructed straight pipe both upstream and downstream of the insertion point. This provides a fully developed velocity profile at the sensing element. Deviations from this configuration — including angled or horizontal mounting, proximity to bends, valves, reducers or tee junctions — will alter the local velocity profile, introduce asymmetric flow impingement on the paddle, and may produce actuation forces that differ significantly from those calculated here. Such installation effects are not accounted for in this tool.

Input Values

Pipe ID
mm
Pipe inside diameter (25–1000 mm)
Process Conn.
Flow switch thread size BSP or NPT
Flow Rate
L/min m³/hr
Enter flow rate in either unit — the other updates automatically
Paddle Length
mm
Paddle length in millimetres (min 10mm, max 22mm)

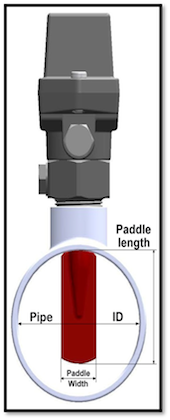

Paddle length and width refers to the actual section of the paddle that is exposed to the flow
Paddle Width
mm
Paddle width in millimetres (min 10mm, max 19mm)
Media
Process medium (affects density & viscosity)
Water Temp
°C
Water temperature (affects density & viscosity)
Pressure
bar (g)
Operating gauge pressure (density corrected to absolute pressure)
Flow Ref
Flow rate reference — standard flows are converted to actual volume at operating T & P
Pipe Material
Pipe material (affects wall roughness & velocity profile)
Answers
Drag Force on Paddle / Wire Sensor
Kelco Flow Switch Force (g) Force (N) Flow Status
⚠ No Kelco flow switch is suitable for the values entered — please check your inputs and try again.
Too Low — won't actuate
Correct — will actuate
Too High — excessive force
Reynolds number (flow regime)

Roughness ε
0.007
mm
Absolute pipe roughness
Air Density
kg/m³
Actual air density at operating temperature & pressure
Actual Flow
L/min
Actual volumetric flow at operating conditions
Velocity
m/s
Mean flow velocity (Q / A)
Friction f
Darcy
Darcy friction factor (Colebrook–White)
V at paddle
m/s
Local velocity at sensor (profile + blockage corrected)
Reynolds no.
Re
Reynolds number (flow regime)

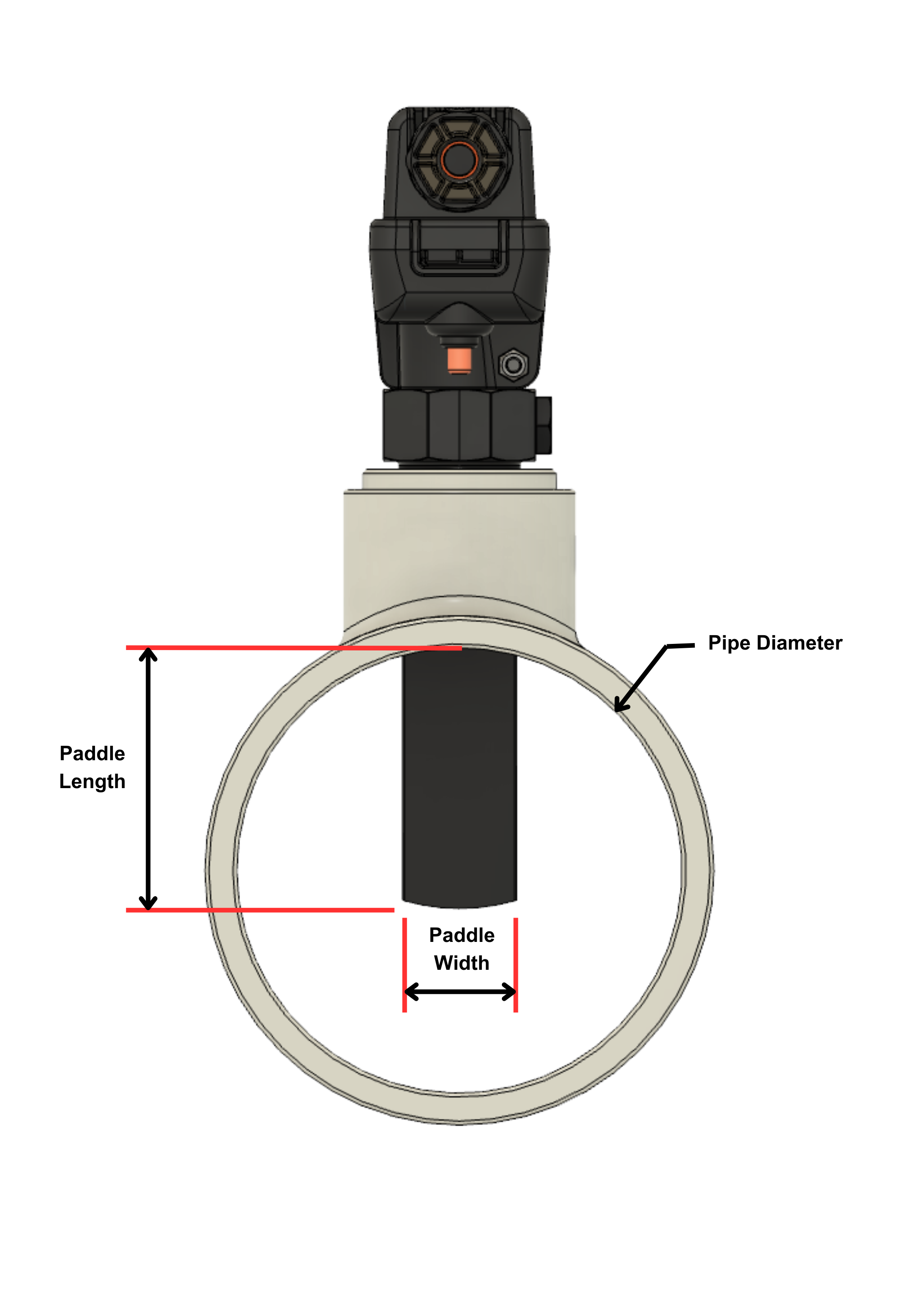

Paddle in Pipe — Cross Section
KELCO L W Pipe ID 5mm
Kelco Paddles & Trailing Wires

Kelco paddles are made from either Polypropylene or Monel Metal (a corrosion-resistant stainless steel alloy). For switches with a 25mm (1") process connection, the standard Polypropylene paddle measures 29mm wide × 168mm long. For switches with a 20mm (¾") process connection, the paddle is 22mm wide × 168mm long. All Polypropylene paddles are designed to be trimmed — both in length and width — so they can be sized to suit each specific application.

Kelco's all-metal construction flow switches (the FM-D range) are fitted with a Monel Metal paddle measuring 22mm wide × 168mm long as standard. An optional extended Monel Metal paddle — 22mm wide × 300mm long — is also available for use in large-diameter pipes and open channel installations. Contact Kelco for details.

Trailing wire sensors are compatible with most Kelco paddle flow switches and can be retrofitted if needed. These 316 Stainless Steel wire sensors have a 2mm diameter and are available in standard lengths from 50mm to 300mm, in 50mm increments. If a wire needs to be cut to a non-standard length, the cut end must be TIG welded or silver soldered to prevent the wire from fraying.
