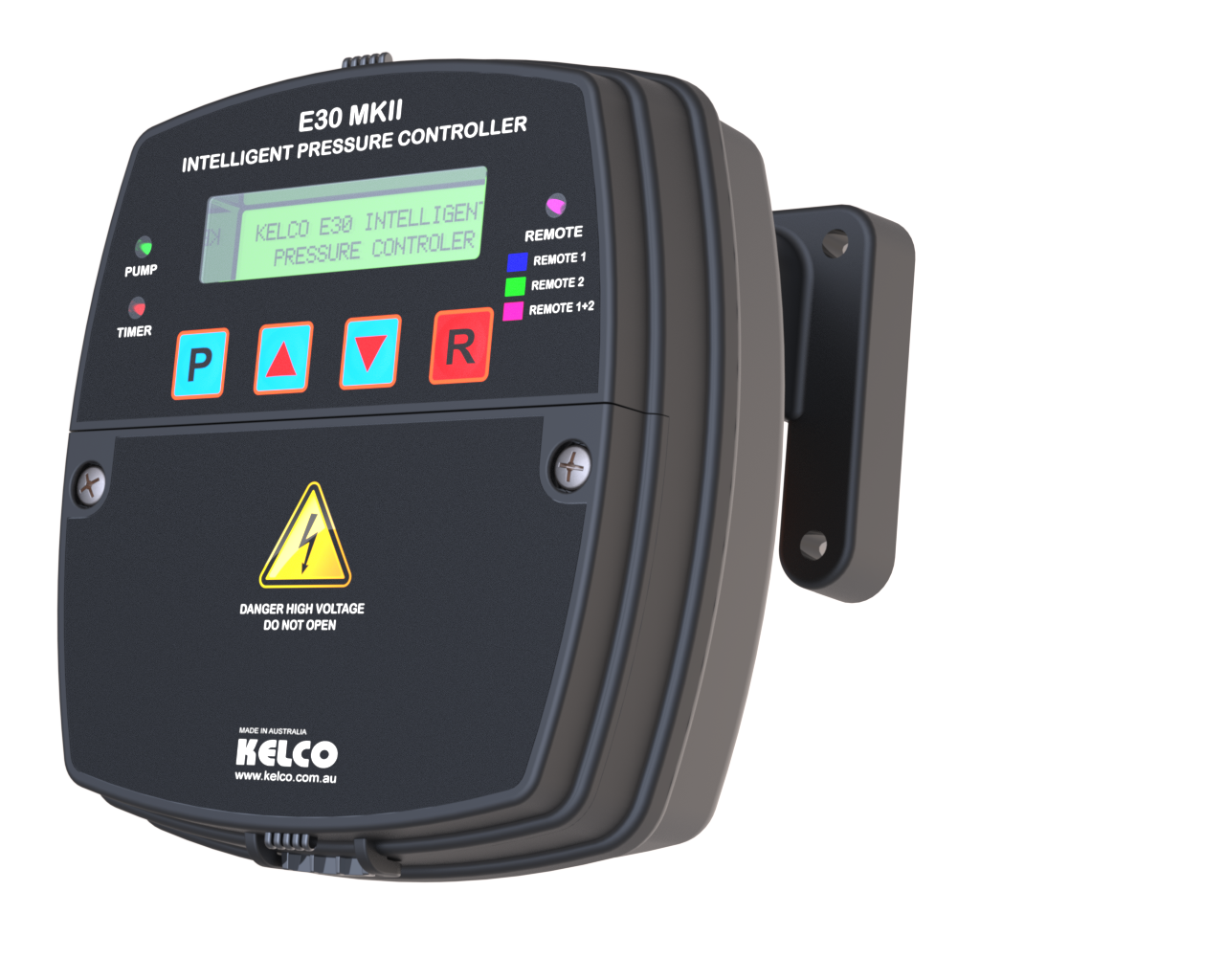

E30-MKII Digital Pressure Switch

Features

  • Very Simple To Program
  • Multi Voltage Operation
  • Displays Pressure and Set Points
  • Displays Running Time
  • Powerful 40 Amp Solid State Drive
  • 30 Amp Primary Pump Relay
  • Dedicated 16 Amp Alarm Relay
  • Detachable Electrical Housing
  • 20 Bar 290 PSI Pressure Rating
  • Wall Mounting Kit Included
  • Accepts Remote Input
  • IP67 Rated

Description

The E30-MKII Digital Pressure Switch can be configured to operate in 1 of 4 ways;

  • For Loss of Prime
  • As a Pressure Guard for high and low protection
  • Single point snap action
  • or for dual pump control

The E30-MKII has a durable thermoplastic construction and a DR brass 1/4″ process connection. The switch has 16 unique functions and 4 operating modes. Please refer to the data sheet linked for more information.
